How to choose a whoop flight controller

Published
Updated
Read time5 min read

On whoops, the "flight controller" is usually an AIO: flight controller, ESCs and often a receiver on one board. Choose wrong and you get motor wires that don't reach, a 1S board on a 2S pack (smoke), or a receiver that won't bind to your radio.

Builders in India also deal with changing stock: the AIO from your favourite YouTube build may be gone. Match cell count, ESC current, connector and receiver, then buy the board your frame expects.

What an AIO is (and is not)

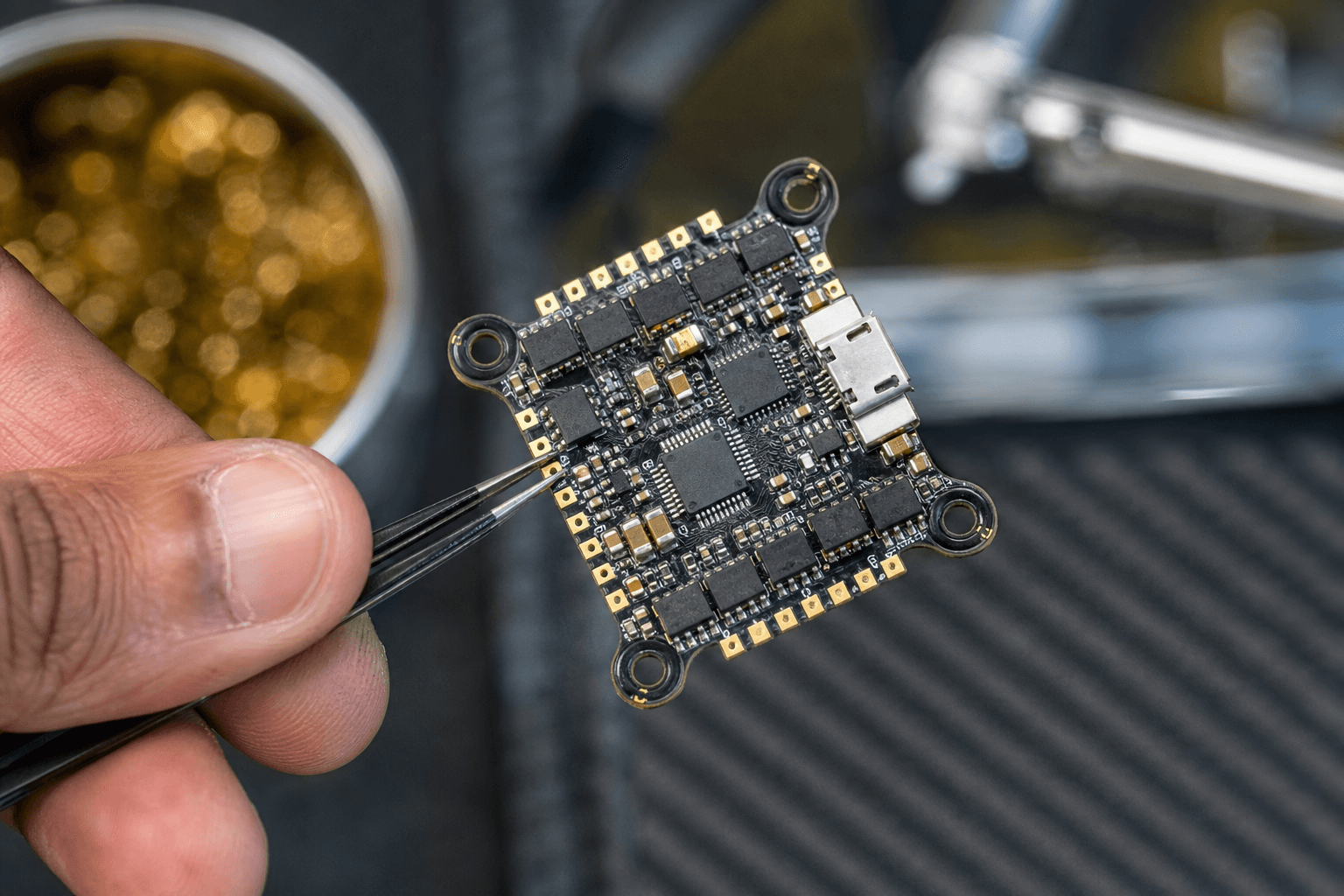

How to choose a whoop flight controller: What an AIO is (and is not)

PieceOn a typical whoop AIO
Gyro + FC MCUYes
ESC (4-in-1)Yes, with a modest current rating (often 5A for 1S)
ReceiverBuilt-in ELRS or UART pads for a separate one
VTXSometimes onboard, sometimes separate
Power distributionIntegrated

You're not shopping for a 5-inch stack. You're shopping for one board that must fit the canopy, the motor wire length and the battery connector of a 65–75mm whoop.

Match these or return the parcel

SpecMust matchFailure if wrong
Cell count1S AIO ↔ 1S pack; 2S AIO ↔ 2S (many 2S boards also run 1S)2S on a 1S board: instant smoke
ESC continuous currentEnough for your motors and propsHot or burnt ESCs
Battery connectorBT2.0 / PH2.0; see the guideAdapters forever
Mount pattern25.5 x 25.5 mm or 26 x 26 mm to match the frame; canopy clearanceWon't mount, rubbing, crushed USB port
ReceiverBuilt-in ELRS, or a UART for yoursBinding misery
Firmware targetA known Betaflight target for the boardRisky flashing

Craft class choice first: 1S vs 2S whoops. Motor pairing: 0802 vs 1102 · motor KV headroom.

Built-in ELRS vs external RX

OptionBest whenWatch-outs
AIO with built-in ELRSBeginner replacements, clean wiringSPI receivers update with Betaflight, UART ones separately; see ELRS whoop RX
AIO + UART pads for a separate receiverYou already own a micro receiverWire mess in a tiny canopy
Non-ELRS leftover boardAlmost never for new buildsLocked to an old protocol

ELRS is the default for new gear in India: what is ExpressLRS. Bind workflow: how to bind ELRS.

Beginner rule: stay in the ecosystem

Buy the AIO your frame or BNF was designed for. Fitting a random "5A 1S" board into another brand's canopy is how USB ports end up blocked, motor wires end up stretched, and soft-mount gummies stop working.

Before you click buy
□ Photo of your current board (labels, connector, antenna routing)
□ Frame name / BNF model written down
□ Cell count of packs you already own
□ Radio protocol (should be ELRS)
□ Soldering comfort: an AIO swap is real soldering

Mounting and motor work often come with FC swaps: how to mount whoop motors · replace whoop motor · soldering without lifting pads.

Current rating without marketing fog

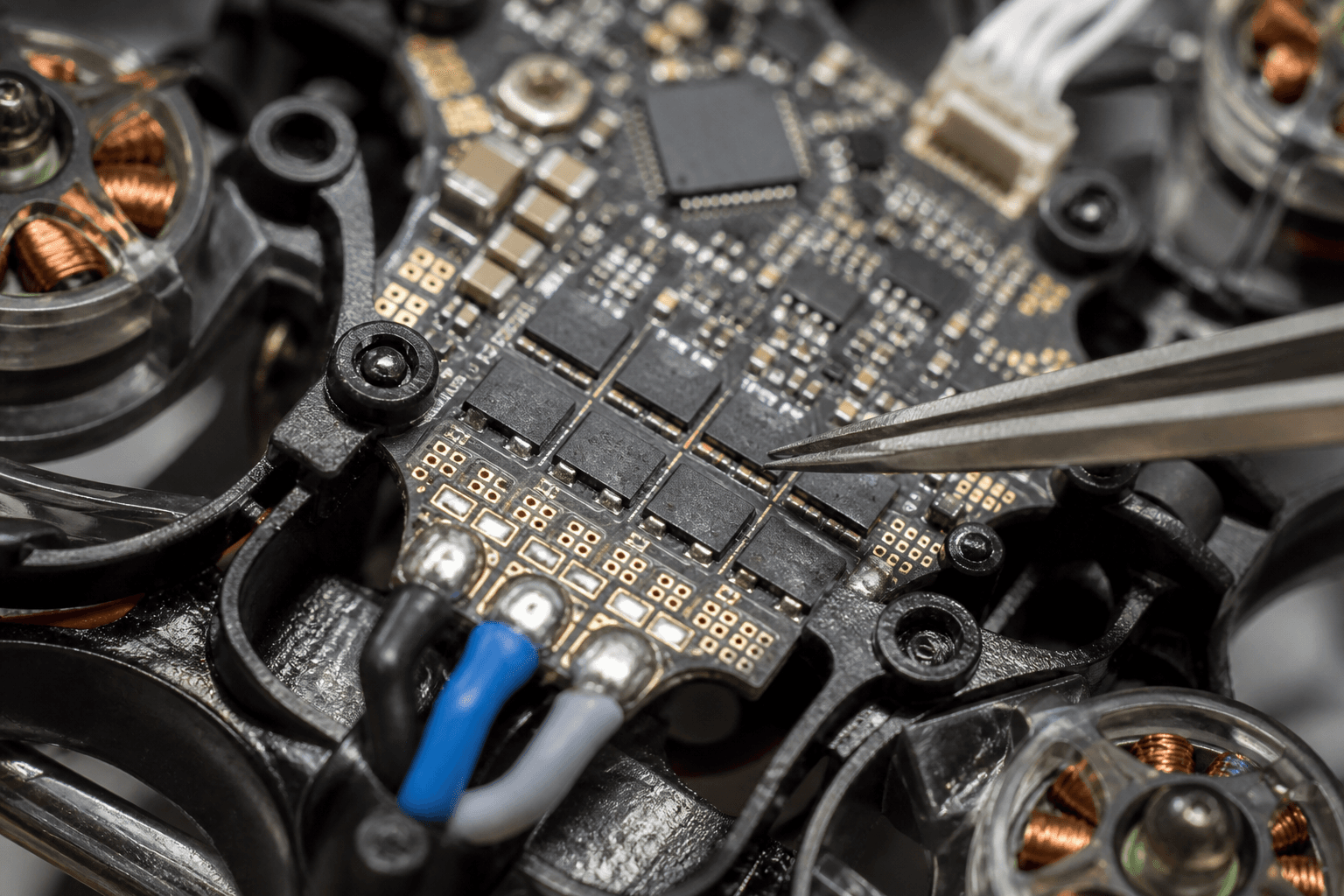

How to choose a whoop flight controller: Current rating without marketing fog

Sellers love "peak" current numbers. A practical approach:

BuildDirection
Light 65mm 1S, small propsA 5A-class board is usually fine
Heavier whoop, bigger propsHigher-current AIO; watch heat
Punchy 2S microA board explicitly rated for 2S, with more current (often 12A class)

If the motors are too much for the ESC, you'll smell it. Fix the combination in Grind Lab before you invent a new "tune".

After install: setup checklist

□ Inspect for solder bridges under bright light
□ Props off: smoke-stopper test, then motor direction
□ Bind the receiver / confirm the ELRS link
□ Flash the correct Betaflight target if needed
□ Modes, rates, failsafe
□ Whoop first-flight checklist
□ Gentle hover over carpet before furniture gaps

Setup guides: Betaflight for beginners · Betaflight whoop setup. Receiver types if you use a separate one: UART vs SPI. Most whoop AIOs run BLHeli_S or Bluejay ESC firmware; for bigger quads, see BLHeli32 vs AM32.

Failure modes

FailureCauseFix
Board dies on plug-in2S into 1S AIOCorrect cell board; check packs
One ESC corner deadCrash or solder bridgeInspect; replace AIO if burnt
No bindWrong protocol or UARTMatch ELRS; correct receiver settings
Brownouts mid-punchWeak pack or undersized ESCBetter packs or more current headroom
Intermittent USBCrushed by the canopy, or a bad portStrain relief; a different canopy

India notes

AIO stock in India changes quickly. Prefer boards with a known Betaflight target and clear ELRS details over mystery boards. Heat and tired packs make undersized ESCs fail faster in summer; the summer field packing mindset applies indoors too, so don't ignore an AIO that's hot after one pack.

Bench

Browse AIOs on the Bench. Check frame, motors, AIO and connector as one build in Grind Lab. Stick practice while you wait for the board: /sim.
