How to balance charge a LiPo
SAFETY // FIELD_REPORT

How to balance charge a LiPo

Published
Updated
Read time5 min read

Balance charging is the skill that keeps packs alive past week three. The charger uses the balance lead (on multi-cell packs) to bring every cell up evenly, so one cell isn't overcharged while its neighbour is still low. Skip it and packs sag early, feel weak towards the end of a flight, and die sooner than they should.

FPV Grind's rule: always balance charge multi-cell packs for flight. Storage-charge them when you won't fly for days. Never leave a pack charging while you go and cook dinner.

Why balance charging matters

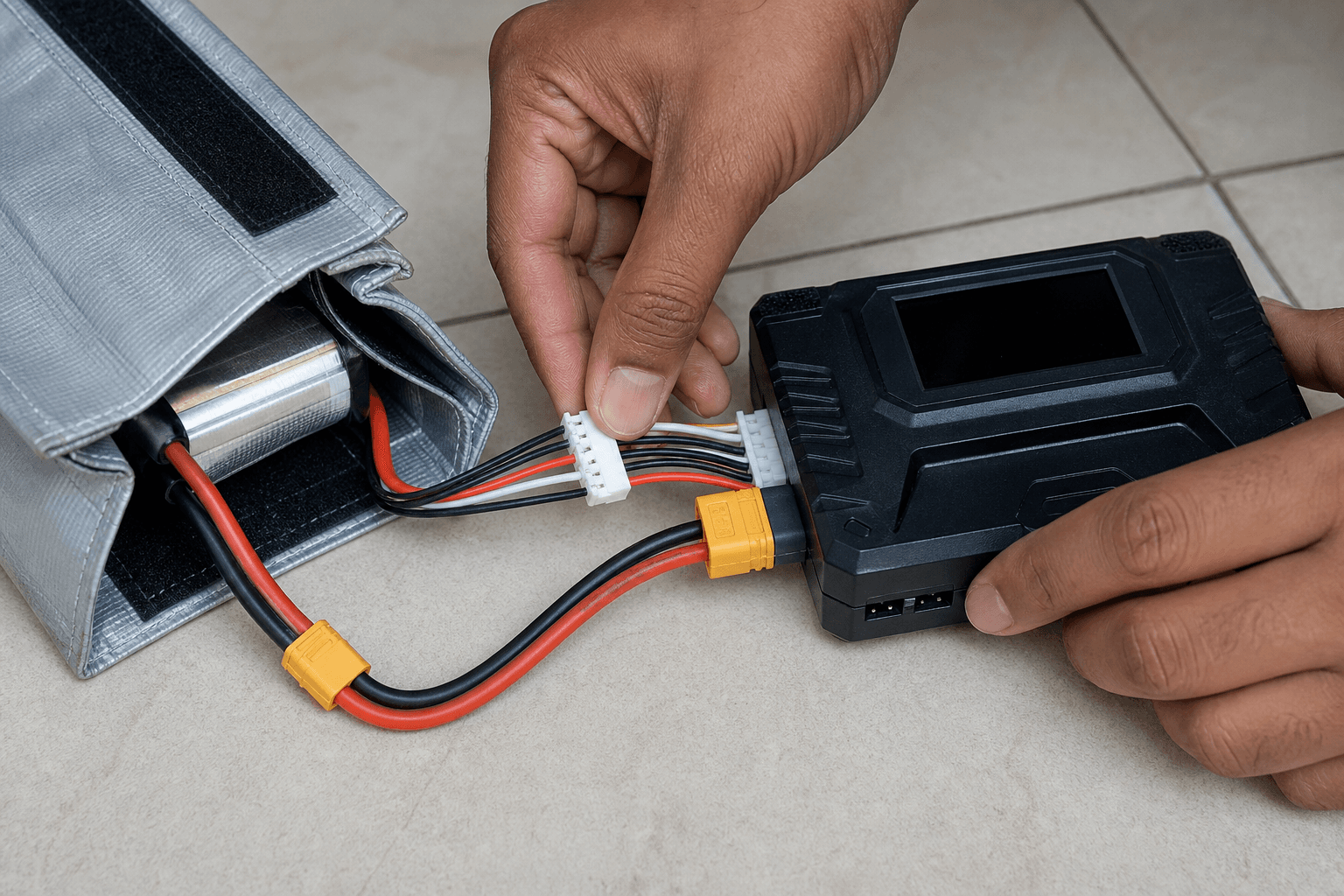

How to balance charge a LiPo: Why balance charging matters

A 4S pack is four cells in series. The main XT60 lead only sees the total voltage. Without the balance lead, the charger can't see that cell 2 is already at 4.22 V while cell 4 is still climbing. Overcharged cells are how packs puff and how "mystery weak packs" start.

SymptomLikely causeFix
Weak last 30 secondsCells drifted apartBalance charge every cycle
One cell much lower after flightWeak cellRetire the pack if the gap stays large
Charger stops early or errorsWrong cell count or bad balance plugCheck settings and cable
Pack hot while chargingCurrent too high or a damaged cellStop, let it cool, inspect

Full habit stack: how to charge a LiPo safely · LiPo safety overview.

Steps (generic balance charger)

1. Select LiPo chemistry (not Li-ion / LiFe unless the pack is that chemistry)
2. Select Balance charge (not plain "Charge" on a multi-cell pack)
3. Set the correct cell count (a balance plug has one more wire than the cell count)
4. Set charge current (see table below)
5. Connect main lead and balance lead before you start
6. Stay nearby until it finishes; don't walk away for "just five minutes"
7. When finished, disconnect and put the pack back in its bag

Charge current (practical starter numbers)

PackTypical 1C currentBeginner note
1S 300–450 mAh whoop~0.3–0.45 AUsually a dedicated 1S USB charger
2S 300–450 mAh~0.3–0.45 ACheck the pack's connector before buying a charger
4S 1300–1500 mAh~1.3–1.5 ACommon freestyle start
4S 1800 mAh~1.8 AFaster only if pack and charger are healthy

1C is the capacity in amps (1500 mAh = 1.5 A). Charging faster than 1C is optional; beginners gain almost nothing and lose margin for error. Connector mismatches cause more whoop-pack trouble than C-ratings do; see the connector guide.

1S whoop packs (special case)

1S packs have no balance lead: there's only one cell, so there's nothing to balance. Use a 1S charger with the right connector (BT2.0 or PH2.0). Multi-port 1S USB chargers charge each port independently and stop each one at 4.2 V (4.35 V for LiHV packs, if the charger has that mode). A 1S parallel board on a hobby charger is different: it joins all packs into one big 1S pack, so set the charger to 1S and add up the current. Never put 1S packs on a 2S setting.

Whoop packs usually ship by surface and arrive slowly, so order a fleet early; see LiPo shipping rules. How many packs: how many LiPo batteries for FPV.

Parallel charging (only when ready)

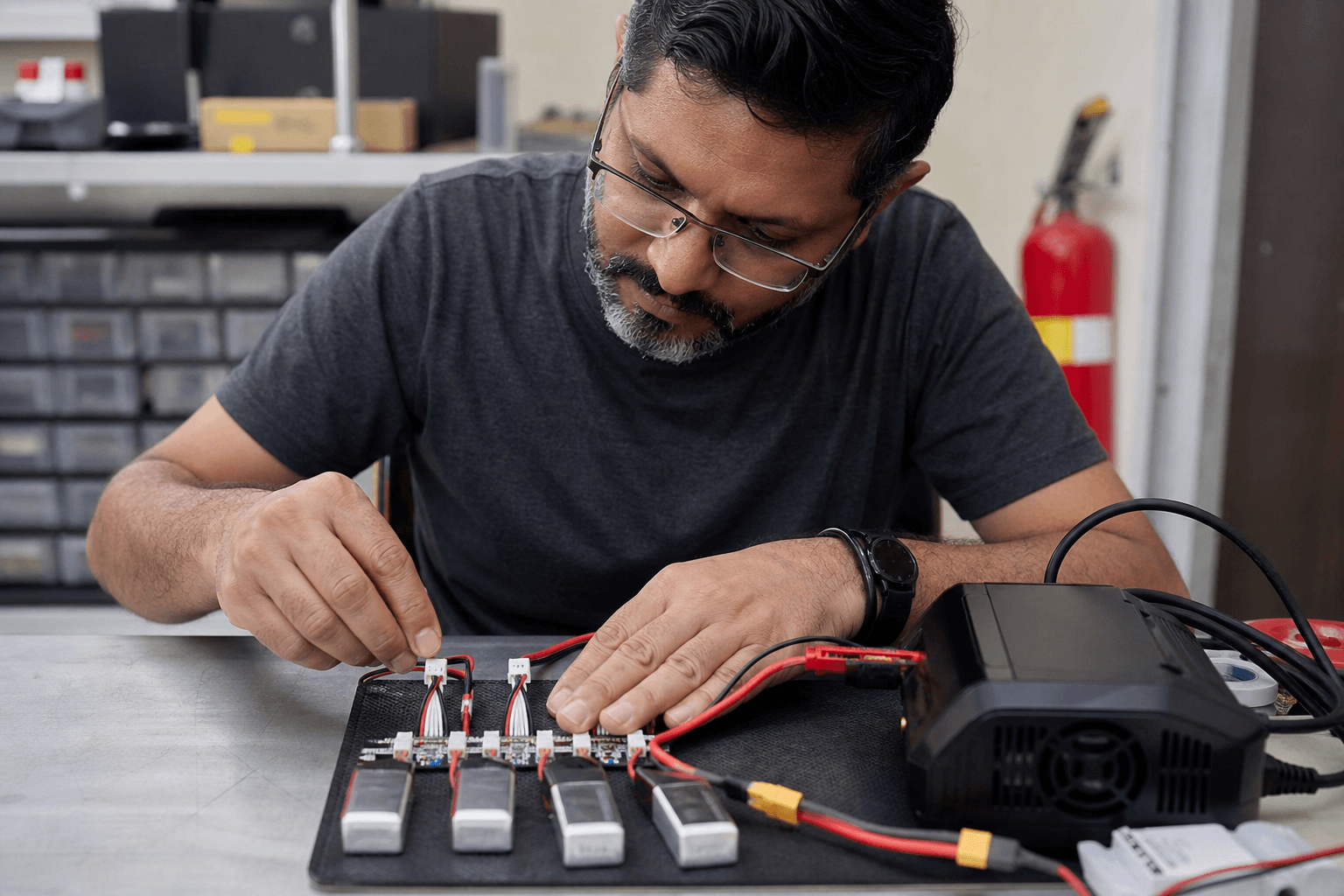

How to balance charge a LiPo: Parallel charging (only when ready)

Parallel boards save time at the field. They also multiply mistakes. Only parallel matched packs (same cell count, similar voltage, similar health) on a proper fused board, with the balance leads connected correctly. Full workflow: parallel charging safe workflow. If you're still learning cell counts, charge one pack at a time.

Failure modes (stop and fix)

MistakeWhat happens
Wrong cell count (3S settings on 4S)Overcharge risk or charger refusal
Main lead only, no balance leadUneven cells; soft packs
"Charge and leave for lunch"Fire risk; always stay with it
Flying packs from storage voltageShort, weak flights
Charging a puffed or damaged packEscalates fast; retire it
Loose PH2.0/BT2.0 adaptersHeat and poor contact

After flying, let packs cool before charging. Store at storage voltage when you won't fly for several days: how to store LiPo batteries.

Charging checklist (home or field)

□ Charger on a hard, non-flammable surface
□ LiPo bag or ammo can nearby
□ Cell count confirmed before Start
□ Balance lead seated fully
□ You are in the room until charge ends
□ Hot packs from the last flight are cooling first
□ Spares ordered early (surface shipping is slow)

Summer field days add heat stress; see the summer heat field packing list.

Bottom line

Balance charge multi-cell packs every cycle, set the real cell count, use about 1C until you know your gear, and never leave a charging LiPo alone. 1S whoops need a 1S charger with the right connector. Parallel charging comes after the basics are boring.
