GPS Rescue can save a lost quad. It can also fly it into a tree if you treat it like a taxi button. Adding GPS to a freestyle quad is as much about wiring and expectations as a firmware checkbox. This guide covers hardware placement, a Betaflight outline, and when iNav is the better long-term choice.

Hardware

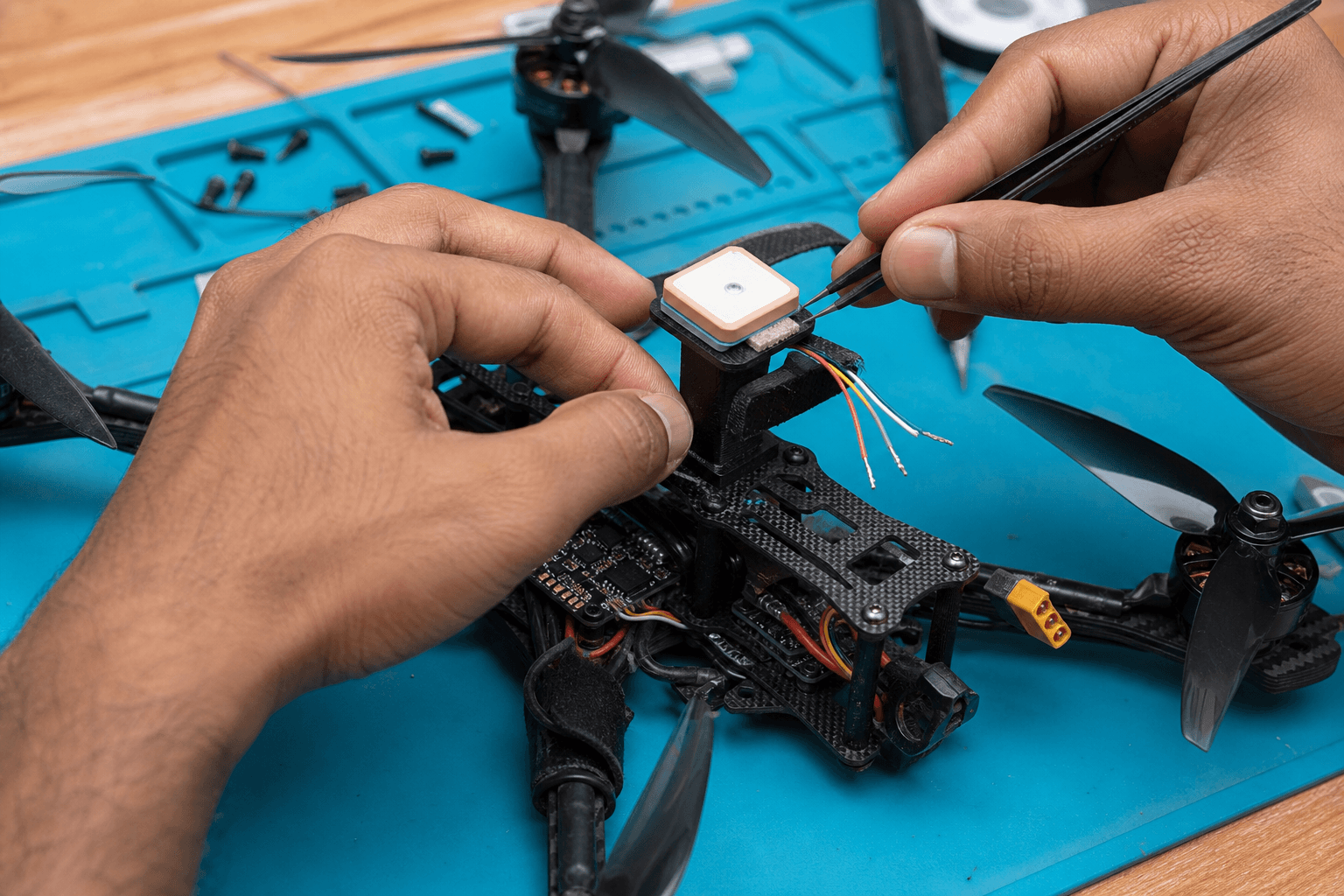

GPS module install for return-to-home curious pilots: Hardware

  • GPS module on a mast, away from VTX and ESC noise where possible
  • UART to the FC; confirm the port in your FC's documentation
  • Antenna facing the sky: carbon fibre blocks GPS signal

Module selection

Betaflight GPS Rescue works with common u-blox-based UART modules (M8, M10 and similar). Check whether your module wants 5 V or 3.3 V and match it to the FC's pads; the wrong supply can damage it or cause flaky behaviour.

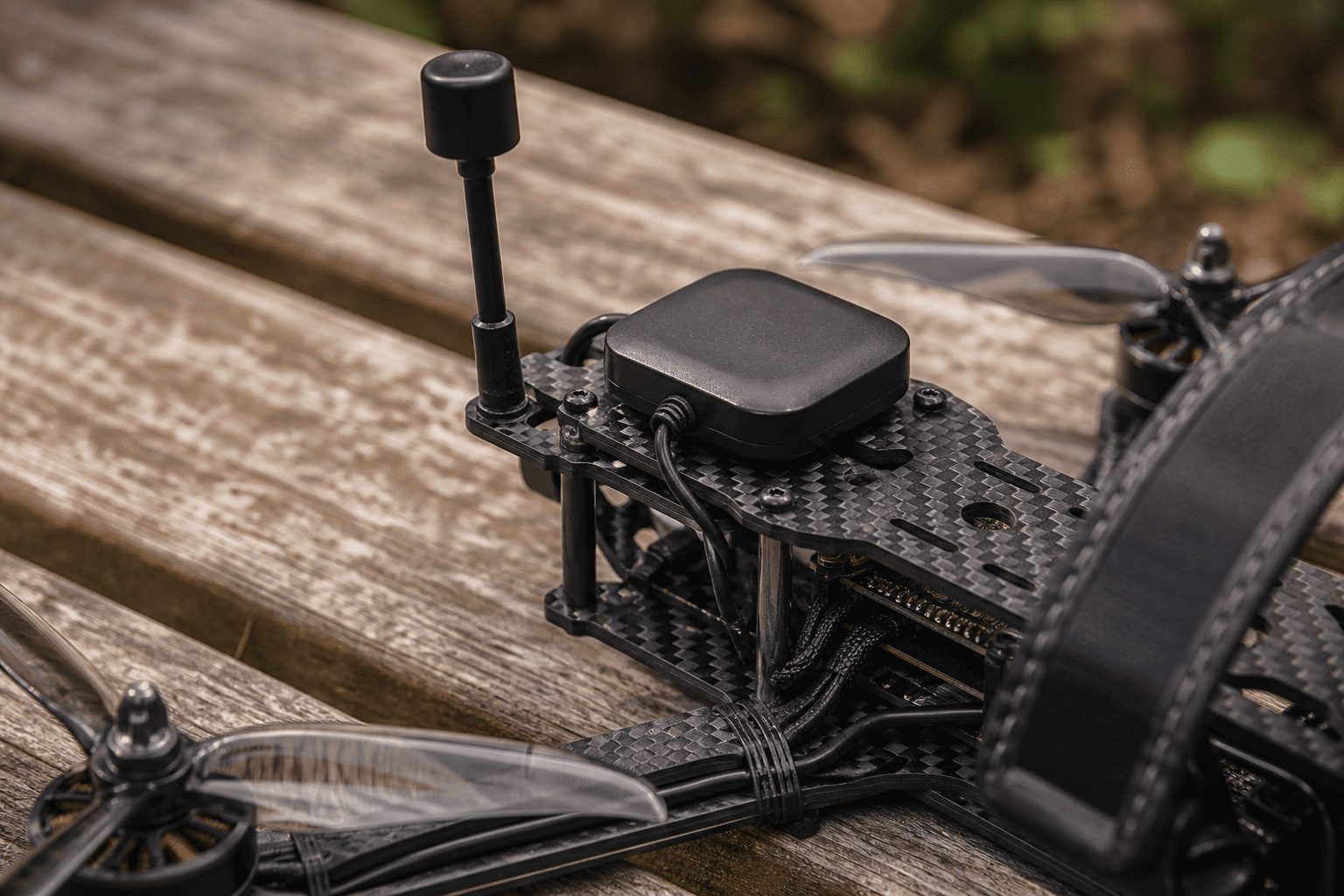

Physical placement

PlacementProsCons
GPS mast on topClear sky viewSnag on branches, crash fragile
Rear mastAway from vtx forward radiationStill needs sky visibility
Side mountLow profileCarbon arm shadowing

Keep GPS away from the VTX, ESC and long coax runs where you can. That isn't always possible on a tight 5-inch build; accept slower fix times rather than pretending placement is perfect.

Wiring to FC

  1. Find a free UART: GPS needs its own; it can't share a port with your CRSF receiver
  2. Solder TX to RX, RX to TX, ground and power per the FC manual; short leads, strain relief
  3. In the Betaflight Ports tab, enable GPS on that UART (57600 is the usual default; Betaflight auto-configures u-blox modules)
  4. Don't power GPS from a noisy BEC if the manual warns against it

See receiver UART vs SPI for port planning; UARTs run out fast on small FCs.

Betaflight outline (not a full tutorial)

  1. Enable GPS in Ports and Configuration
  2. Get a 3D fix outdoors, props off, before trusting Rescue
  3. Configure GPS Rescue angles, altitudes and sanity checks
  4. Test the failsafe path on open ground; see failsafe scenarios

Configuration discipline

GPS bring-up order:
1. Outdoors, open sky, props off
2. Configurator GPS tab shows satellites climbing
3. 3D fix confirmed; understand that home is set when you arm
4. GPS Rescue settings: angle, minimum sats, return altitude
5. Failsafe: set Stage 2 to GPS Rescue (optionally a test switch)
6. Test on an open field, in sight, low wind, with height to spare

Settings that bite

  • Rescue angle too aggressive: overshoots or struggles on a low battery
  • Minimum satellites too low: Rescue starts on a poor fix
  • Return altitude below the trees: Rescue fails obviously
  • Arming without a fix allowed: no home point, so Rescue can't work

Set sane limits. Test with a charged pack on an open field first.

Realistic expectations

  • A cold first fix can take several minutes; be patient
  • Buildings reflect GPS signals, so dense Indian housing makes fixes worse
  • Rescue needs height to spare and a clear climb path

What GPS rescue is not

  • Not precision landing on your mat
  • Not reliable under heavy canopy
  • Not a substitute for a healthy radio link; see ELRS setup
  • Not permission to fly beyond where the rules allow; see DGCA rules

Urban India reality

Tall buildings reflect GPS signals, so your position jumps around. Rescue can't see obstacles, and it will climb and fly a straight line home regardless. Treat it as better than nothing for link loss over open fields, not as insurance for terrace flying.

Betaflight vs iNav

For wings and cruisers, iNav is usually a better long-term choice than Betaflight GPS Rescue.

Use caseBetaflight GPS rescueiNav
Freestyle backupFine, with testingOverkill
Long-range wingLimitedStrong fit
Return-to-home and landingBasicMore mature
Waypoints / missionsNoYes

If GPS is central to how you fly rather than a panic button, plan an iNav build on suitable hardware instead of bolting GPS onto a freestyle quad.

Install mistakes

MistakeResult
GPS under a carbon plateWeak or no fix
UART misconfiguredNothing in the GPS tab
Antenna facing the groundSlow or bad fix
First Rescue test over treesA crash video

Compass and interference

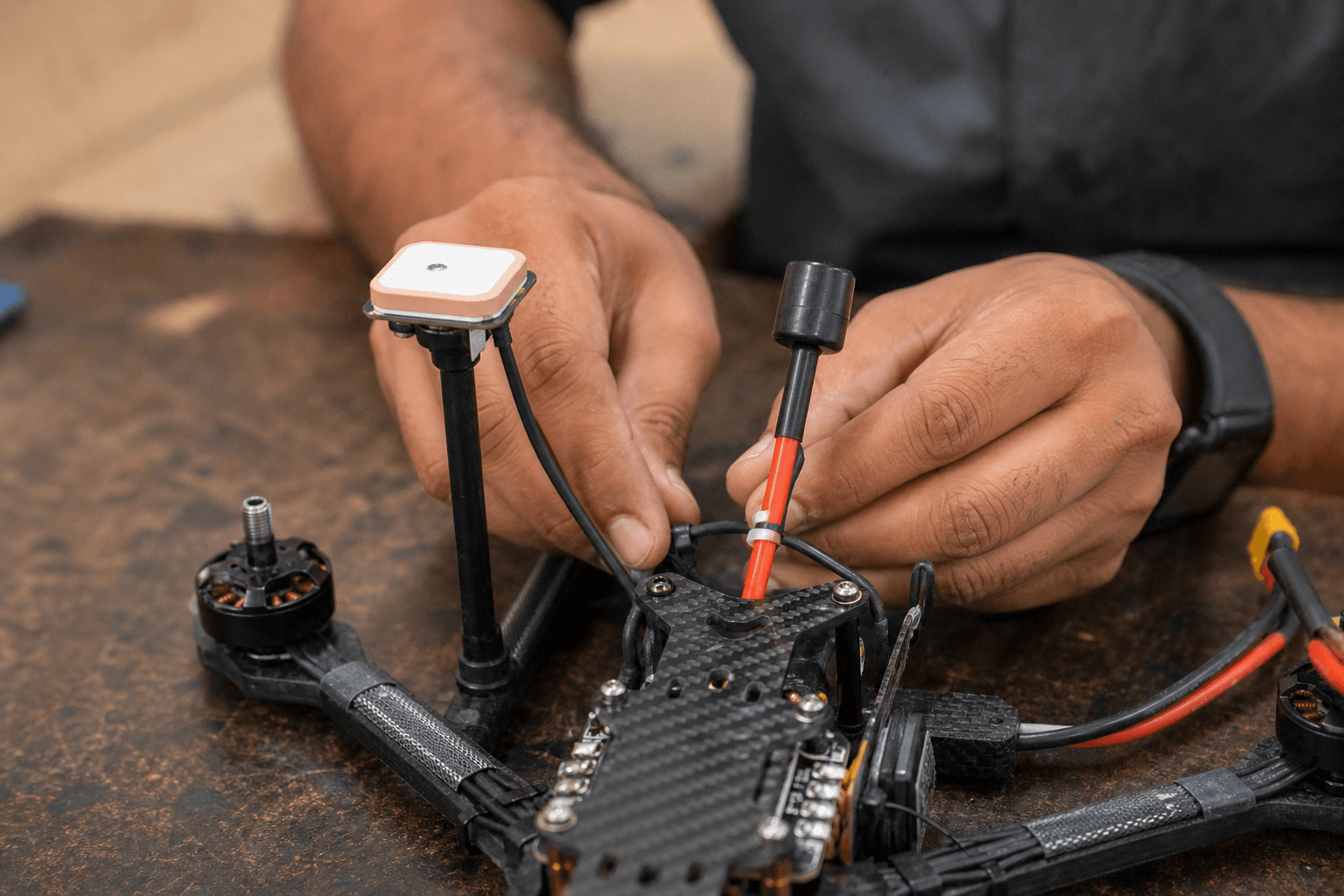

GPS module install for return-to-home curious pilots: Compass and interference

Some GPS modules include a compass (magnetometer); others don't. Betaflight GPS Rescue works without a compass, using the GPS course over ground, while iNav navigation relies on one far more. On iNav builds, screws, the VTX and power wires near the compass cause yaw problems. If you only want Betaflight Rescue, follow Betaflight docs; don't assume iNav tutorials apply.

Bench vs field testing

Get a 3D fix outdoors before the first flight; a GPS on a desk near a window gives misleading results. Note the satellite count and HDOP in the configurator, and learn what "good" looks like at your flying spot versus your balcony.

Maintenance

GPS modules survive crashes better on masts that give way than on short rigid mounts that pass the shock to the board. Carry spare mast hardware. After a hard hit, check fix times before trusting Rescue again.

When to stop and rethink

If you can't get a reliable 3D fix at your regular spot, GPS Rescue won't save you there. Improve placement or accept that Rescue is for open-field days only.

Pre-flight GPS checklist

□ 3D fix on ground before arm (min sats per your config)
□ Home point: where will it try to return?
□ Rescue switch or failsafe path tested this month over grass
□ Height to spare at the spot: trees, wires, buildings
□ Battery healthy: Rescue climbs on a sagging pack go badly
□ Link healthy: GPS doesn't fix radio loss
Sat count (indicative)Pilot action
0–5Don't arm for a flight that relies on Rescue
6–7Marginal; Betaflight's default minimum is 8
8+ and stableProceed if HDOP is steady in the GPS tab
Fix lost mid-flightAssume Rescue won't work; fly home in sight

First Rescue test (open field only)

  1. Arm and climb to about 10 m, clear of people
  2. Trigger Rescue with a switch, or switch off the radio to simulate failsafe
  3. Watch the climb path: obstacles the GPS can't see still exist
  4. Take back control or disarm when safe; note sat count and behaviour
  5. Repeat after any change to the GPS mount or FC

One calm test beats discovering your Rescue settings over a tree line during a real link loss.
